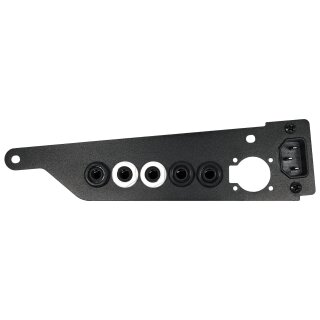

- Patchbay made of matt black powder-coated 2 mm thick aluminum
- For Looperwerk Ascend Pedalboards
- Integrated Patchbox Quintet
- IEC feedthrough
-
D-type opening incl. cover (does not have to be ordered separately)
You can choose whether the Patchbox Quintet BASIC or the Patchbox Quintet GEN 4 is installed; the respective features can be found on the product pages.
The matching handles are recommended for installing the patchbay to the pedalboard - they also protect the cables connected to the patchbay from the outside. However, the patchbay can also be mounted without handles if requested.
The patchbay is pre-assembled for installation on the right side of the pedalboard. The IEC feedthrough and the patchbox can be easily turned around for installation on the left side.
IEC feedthrough:
Many pedalboard power supplies can be connected to the inside using an IEC extension cable.
Data: Rated current: 10A, Rated voltage: 250 V/AC, RoHS compliant
D-type opening:
D-type modules can be mounted here. It is recommended that the modules are attached to the patchbay from the rear.
With Looperwerk modules, the two screws on the front of the modules are removed and used for mounting. Screws and self-locking nuts are included for mounting modules from third-party manufacturers (e.g. Neutrik) - all you need is a Phillips screwdriver.
D-type modules:
Other matching modules:
-
XLR male: Neutrik NA3MDF
-
XLR female: Neutrik NA3FDM
-
RJ45: Neutrik NE8FDX-P6
-
USB: Neutrik NAUSB-W oder Neutrik NAUSB3
-
HDMI: Neutrik NAHDMI
