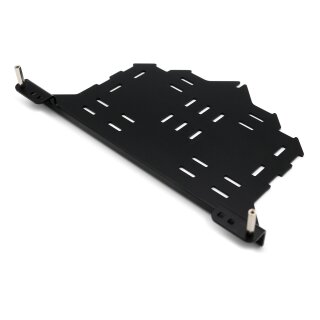

The power supply tray can be mounted under the pedalboard in two different ways:
- With the shorter spacers resting from above on the rear lip of the base level - for power supplies with a depth of up to 105 mm and a height of up to 40 mm (e.g. “Harley Benton PowerPlant ISO-10AC Pro” or “Rockboard ISO Power Block V12 IEC”).
- Attached to the rear lip of the base level from below using the longer spacers, for a little more space on the power supply shelf - for power supplies with a depth of up to 55 mm and a height of up to 46 mm (e.g. “Strymon Zuma”). Power supply units with a depth of up to 100 mm and a height of up to 44 mm will also fit on the power supply tray.
Incl. spacers in two different sizes, screws, reusable cable ties for fastening the power supply unit and a matching hexagon wrench.
Mounting with the shorter spacers resting on the rear lip of the base level.
