Clearance Sale of the Previous Model
Important: Due to its different dimensions, this pedalboard is not compatible with many cases – it should fit in “Explorer Cases 5822.B”.
The depth of the pedalboard, including the hinges of the upper tier, is approximately 38 cm.
On both Levels many effect pedals can be screwed to the board.
The patchbay & handles are compatible and can be ordered separately (if desired).

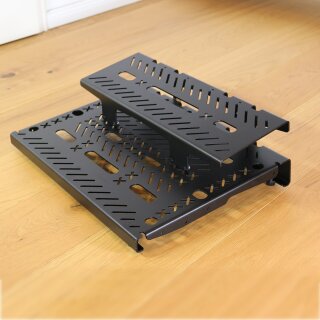

Set consisting of Ascend 50 X-Grid, Lift 50 & Power-Supply Tray.
Features:
- Extremely light and sturdy.
- The upper level also moves backwards when opened and therefore offers perfect access to the effects underneath.
- Space for the power supply and a patchbay under the pedalboard - the entire surface is available for effects.
- A variety of options for attaching patch and power cables directly to the pedalboard with cable ties - the usual adhesive bases are not required.
- Manufactured in Germany by various companies in the area - with each pedalboard going through my hands several times for intermediate steps, allowing for precise quality Control.
Technical data:
Made in Germany of 3 mm thick matt black powder-coated aluminum.
Dimensions Ascend (lower level):
-
Width (without optional handles): 48.6 cm
-
Depth
- Total: 35.7 cm
- Surface: 34.5 cm
Height
- Front edge: 3.8 cm
- Rear edge: 6.8 cm
Dimensions Lift (upper Level):
-
Width: 47.8 cm
-
Depth (surface): 16 cm
-
Height (entire pedalboard, Lift attached to Ascend):
- on the rear edge of Lift: 14.7 cm
- on the front edge of Lift: 12 cm
-
Available height underneath:
- Front: 6.2 cm
- Rear: 7.6 cm
-
Depth underneath Lift: 16 cm (14.5 cm in the area of the ball catches)
-
Depth of Ascend in front of Lift: 17.5 cm
Weight:
1.7 kg (Ascend) + 1.0 kg (Lift) = 2.7 kg
