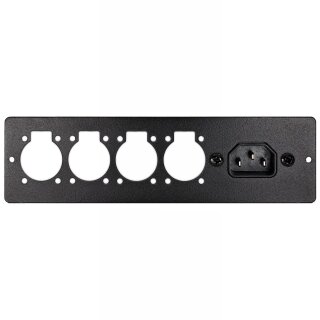

- Patchbay made of matt black powder-coated 2 mm thick aluminum
- For mounting on RockBoard pedalboards or for DIY-pedalboards
- Four D-type openings
- IEC feedthrough
- Incl. screws for mounting on RockBoard pedalboards
- Incl. screws and self-locking nuts for mounting D-type modules
The patchbay adds 6-10 mm with D-type modules.
Use this print template to check whether this patchbay is compatible with your pedalboard.
IEC feedthrough:
Many pedalboard power supplies can be connected to the inside using an IEC extension cable.
Data: Rated current: 10A, Rated voltage: 250 V/AC, RoHS compliant
D-type opening:
D-type modules can be mounted here. It is recommended that the modules are attached to the patchbay from the rear.
With Looperwerk modules, the two screws on the front of the modules are removed and used for mounting. Screws and self-locking nuts are included for mounting modules from third-party manufacturers (e.g. Neutrik) - all you need is a Phillips screwdriver.
D-type modules:
Other matching modules:
-
XLR male: Neutrik NA3MDF
-
XLR female: Neutrik NA3FDM
-
RJ45: Neutrik NE8FDX-P6
-
USB: Neutrik NAUSB-W oder Neutrik NAUSB3
-
HDMI: Neutrik NAHDMI
