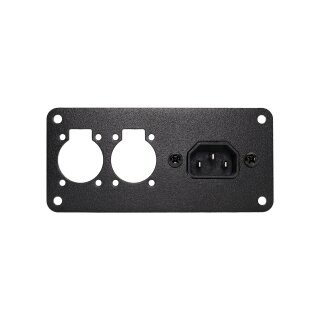

This patchbay is optimised for self-built pedalboards or Pedaltrain pedalboards from the Novo and Classic series.
- Panel made of 2 mm thick matt black powder-coated aluminium
- with IEC feedthrough (reversible for mounting on the other side of the pedalboard)
Self-drilling screws for fastening and assembly instructions are included - as well as screws and nuts for attaching the D-Standard feedthroughs. If you do not need a D-Standard opening and would like to close it, there is a cover available here.
The nuts have a toothed ring, so they are self-locking, and you only need a simple Phillips screwdriver to attach the D-Standard feedthroughs. This is much better than if there was a thread directly in the panel, which could easily wear out.
The D-Standard feedthroughs can be attached either from the outside of the patchbay or from the inside to save space - great if you transport your pedalboard in a case.
Depending on the way the D-Standard feedthroughs are attached (and depending on the D-Standard feedthroughs), the patchbay adds approx. 6-10 mm.
An IEC extension cable can be attached to the inside of the IEC feedthrough, you can find several variants in the patchbays category.
IEC feedthrough specifications:
- Rated current: 10A
- Rated voltage: 250V/AC
- RoHS Compliant: Yes
In the patchbays category you will find a print template to check whether this patchbay is compatible with your pedalboard.
