To connect a power supply with an IEC C14 input to one of the patchbays with IEC feedthrough.
Please note: Depending on the power supply, the power socket is installed with the middle pin facing up or down.
The meaning of the orientation "left" or "right" can be seen on the picture.
"Left" describes, for example, that the cable bends to the left when the middle pin of the plug points upwards and you look at the plug from the front (from the perspective of the socket).

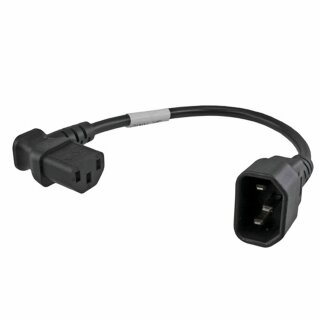

- Plug: C13 90° angled to the left or right to C14
- Length: 30 cm
- Cross section: 3 x 0,75mm²
- Material: H05VV-F
- Tested temperature range in normal operation -15°C - +70°C
- Protection class IP20
- Approval: ENEC 10 VDE (Europe), SAA (Australia)
- RoHS compliant
